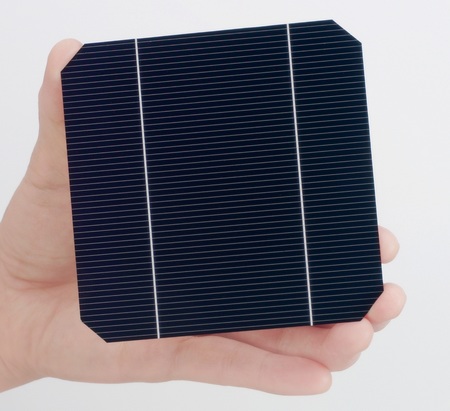

5″ monocrystalline Silicon 5 inch 125 Series Solar Cell
5″ monocrystalline Silicon 5 inch 125 Series Solar Cell is a kind of solar photovoltaic cell that adopts high-purity single crystal silicon rod as the raw material.
In order to reduce production cost, some monocrystalline solar cell manufacturers also adopt the leftover materials generated in processing semiconductor devices and waste single crystal silicon materials to produce single crystal silicon rods for manufacturing monocrystalline solar cells.
At present, the photoelectric conversion efficiency of monocrystalline solar cell is about 15%. The experimental efficiency has once reached 24.7%.

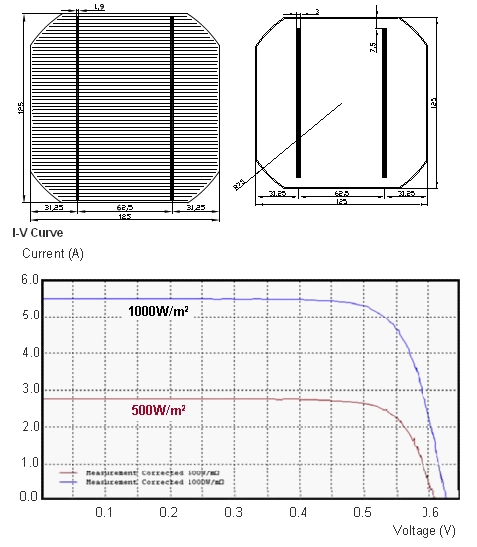

5″ monocrystalline Silicon 5 inch 125 Series Solar Cell Physical Characteristics
Dimension
125mm×125mm±0.5mm
Diagonal 150mm±1mm
Thickness
Final Cell: 210μm±40μm
Silicon: 200μm±30μm
Front Side(-)
Blue SiN anti-reflection coating
Two 1.9mm wide silver bus bars
Back Side(+)
Full aluminum back-surface field
3mm wide silver soldering pads
5″ monocrystalline Silicon 5 inch 125 Series Solar Cell Features
1.High efficiency Monocrystalline silicon solar cell solar cell with anisotropic etched surface
2.Low reverse current, high shunting resistance and dependability
3.Proper handling from incoming inspection
4.The quality of our Monocrystalline silicone solar cell is high guaranteed by our quality controls on production, outgoing inspection to packaging checking.
5.100% checked for reverse current and visual appearance
6.Small light-induced degradation
7.Calibration by Fraunhofer ISE
5″ monocrystalline Silicon 5 inch 125 Series Solar Cell Typical Electrical Characteristics
Class
Efficiency
Pmpp
Umpp
Impp
Uoc
Isc
(%)
(W)
(V)
(A)
(V)
(A)
U3
18.25
2.712
0.527
5.138
0.628
5.446
U2
18
2.674
0.526
5.116
0.627
5.439
S4
17.75
2.637
0.525
5.045
0.627
5.399
S3
17.5
2.6
0.522
5.018
0.625
5.389
S2
17.25
2.563
0.519
4.981
0.624
5.377
S1
17
2.526
0.516
4.944
0.621
5.362
C4
16.75
2.489
0.511
4.901
0.619
5.337
C3
16.5
2.452
0.51
4.819
0.617
5.317
C2
16.25
2.414
0.501
4.821
0.616
5.304
C1
16
2.377
0.501
4.743
0.615
5.302
R3
15.5
2.303
0.492
4.675
0.614
5.293
R1
15
2.229
0.49
4.557
0.611
5.144
Data under Standard Testing Conditions (STC)
1000W/m2, AM1.5, 25℃
Test accuracy
Pmpp: ±1.50% rel.
Efficiency: ±0.25% abs.
Typical Temperature Coefficients
Pmpp: -0.47%/℃ Voltage: -0.38%/℃ Current: +0.10%/℃
Package
Typical package for one box is 1008 cells. These monocrystalline silicon solar cells are sealed in paper boards every 72 pcs. Gross weight per unit box shall be around 8.50 kg
