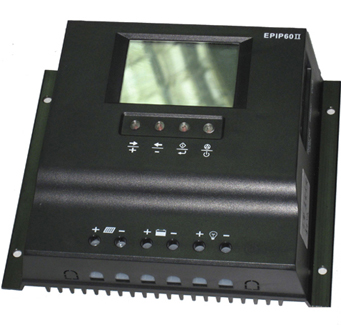

30A 48V Solar Regulator, 30 Amp 48VDC Solar Charge Controller

Posted by admin in News

30A 48V Solar Regulator, 30 Amp 48VDC Solar Charge Controller

Introduce

A solar regulator is needed in virtually all solar power systems that utilize batteries.  The job of the solar regulator is to regulate the power going from the solar panels to the batteries.  Overcharging batteries will at the least significantly reduce battery life and at worst damage the batteries to the point that they are unusable.

The most basic solar regulator simply monitors the battery voltage and opens the circuit, stopping the charging, when the battery voltage rises to a certain level.  Older charge controllers used a mechanical relay to open or close the circuit, stopping or starting power going to the batteries.

Feature

 1) Microprocessor which is made in USA

2) PWM or ON/OFF series battery charging options

3) State of charge (SOC) battery regulation

4) Battery Ah setting, boost charging, equalising charging, float charging

5) Automatic load reconnection, manual load switch

6) Temperature compensation

7) LCD display: SOC as a fuel gauge, all system parameters in digital value, system status as symbols

8) Full circuit protection, electronic fuse Field adjustable parameters by four buttons

9) Load control option: ON/OFF, Dusk-to-Dawn, On + setting hours, setting time ON/OFF.

Specification:
