6A 12V | 24V Auto CMP12 JUTA Solar Charge Controller
Function:

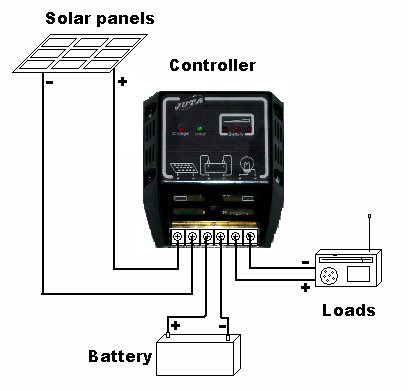

According to the voltage of battery, controller will adjust the charging current and decide if to supply power to the loads.
1. Generally keep the battery on full voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from supplying power to solar panels during nights.
Technical Specification:
Mode: CMP12 6A
Output Voltage(DC): 12V/24V AUTO SWITCH
Max Load Current: ≤ 6A
Full Charge Cut: 13.7V/12; X2/24V
Low Voltage Cut: 10.5V/12V; X2/24V
Temp Compensation: -3mv//cell
Zero Load Loses: ≤ 20mA
Min Wire Size: 2.5 mm2
Voltage Drop: <190mv
6A 12V | 24V Auto CMP12 JUTA Solar Charge Controller
Posted by admin in JUTA Solar Controller
6A 12V | 24V Auto CMP12 JUTA Solar Charge Controller
Function:
According to the voltage of battery, controller will adjust the charging current and decide if to supply power to the loads.
1. Generally keep the battery on full voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from supplying power to solar panels during nights.
Technical Specification:
Mode: CMP12 6A
Output Voltage(DC): 12V/24V AUTO SWITCH
Max Load Current: ≤ 6A
Full Charge Cut: 13.7V/12; X2/24V
Low Voltage Cut: 10.5V/12V; X2/24V
Temp Compensation: -3mv//cell
Zero Load Loses: ≤ 20mA
Min Wire Size: 2.5 mm2
Voltage Drop: <190mv
CMP12 JUTA Solar Charge Controller Specification:
