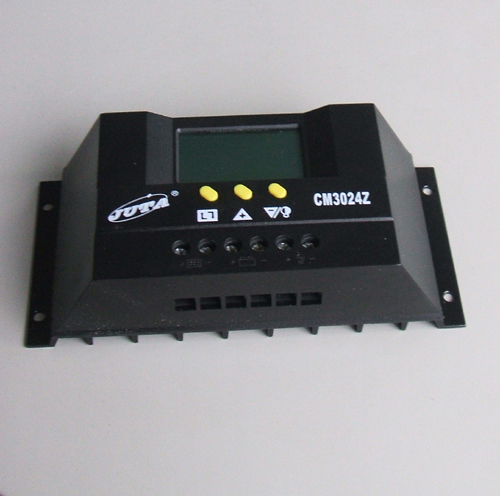

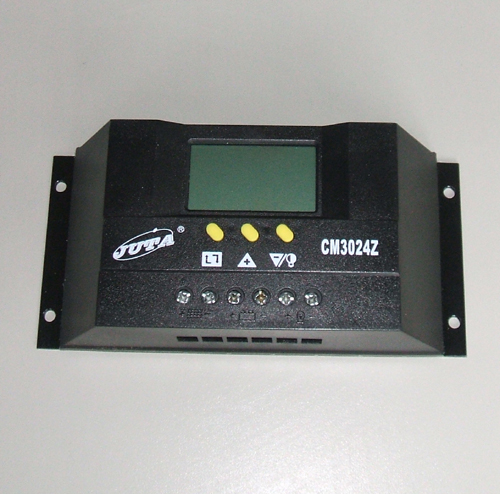

If you use solar panels as a means of energy, you should be regulating the current charge in accordance with the battery voltage, and this 12/24V 20A 30A solar controller, with LED indicator lights, is just the device for the job.
Benefits: • Maintains full voltage in battery
• Prevents battery from over-charging
• Prevents battery from over-discharging
• Prevents battery from supplying electricity to solar panels at night
• Reverse polarity protection for battery
• Reverse polarity protection for solar panel
• Auto locking self-protection mode when current exceeds rate of controller
• Auto locking self-protection mode when short circuit occurs
• Controller will auto-separate loads from system in the event of battery low voltage
• Protection against lightning strikes
• Automatic Temperature Compensation
• LCD screen displays charge current, discharge current and battery voltage every 5 seconds
• Continuous count of charge and discharge current battery hours
• Auto set-up of charge-on/off and load-on/off voltage depending on voltage level of the battery
• Manual set-up of charge-on/off and load-on/off voltage option
Specifications:
• Rated voltage: 12V, 24V [automatically distinguished voltage]
• Loading current max: 20A ,30A
• Full charge cut: 13.7V; X 2/24V
• Low voltage cut: 10.5V; X 2/24V
• Reconnected voltage: 12.6V; X 2/24V
• Temperature compensation: -3mv/cell, ËšC recognise and reset
• No load loss: ?45mA
• Wire area minimum: 6mm²
• Voltage drop: <520mv
• Dimensions: 16 x 14.5 x 5.7cm [6 x 5.8 x 2.2 ”]
• Weight: 570g
• Colour: black
