CMP12 solar charge controller is widely use for economy solar kit.cmp12 solar charge controller is the controlling center of the PV battery in off-grid power system which makes use of solar cells array to protect your batteries.According to the voltage of battery, Solar charge controller will adjust the charging current and decide if to supply power to the loads.
Feature:
· Generally keep the battery on full voltage condition.
· Prevent the battery from over-charging.
· Prevent the battery from over-discharging.
· Prevent the battery from supplying power to solar panels during nights.
· Temperature Compensation: -20°C ~ +60°C
Protection:
· Overcharging protection
· Can be used for all panels
· Overdischarging protection
· Short and Open Circuit protection
· Full specification available if required
· Fail Safe and cannot be damaged by accidental wiring mistakes
· Advanced design with simple plug and play technology. No need for complicated adjustments.

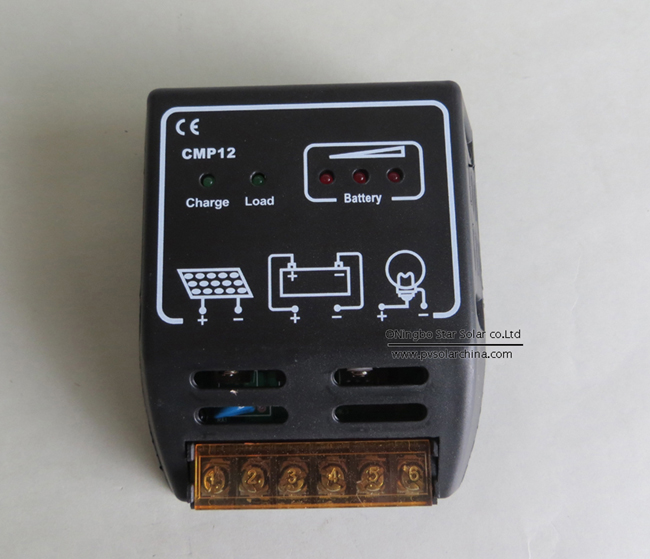

Indicator LED
1.The Battery is being charged strongly when the Charge LED is lighting;Filckering means the battery is in floating charge Mode,if it’s off means charging stopped.
2.When the LOAD LED is lighting,it means there is output and load can work;if it’s off,there isn’t output and the load can’t work.

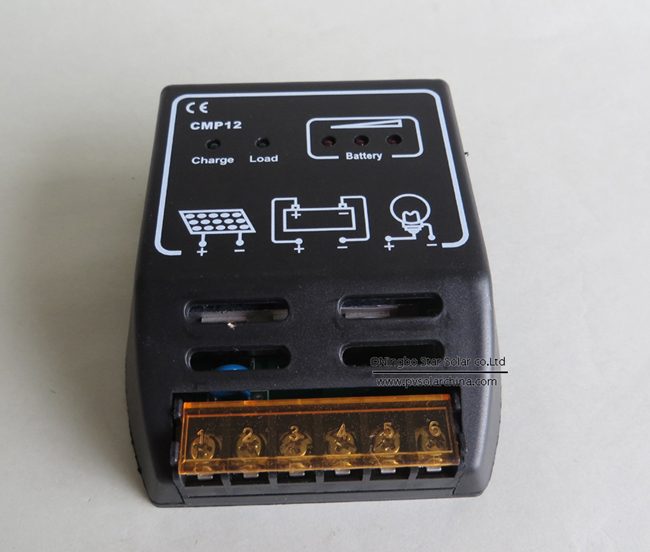

CMP12 10A 12V 24V PWM Solar Charge Controller
Posted by admin in News
CMP12 10A 12V 24V PWM Solar Charge Controller
CMP12 solar charge controller is widely use for economy solar kit.cmp12 solar charge controller is the controlling center of the PV battery in off-grid power system which makes use of solar cells array to protect your batteries.According to the voltage of battery, Solar charge controller will adjust the charging current and decide if to supply power to the loads.
Feature:
· Generally keep the battery on full voltage condition.
· Prevent the battery from over-charging.
· Prevent the battery from over-discharging.
· Prevent the battery from supplying power to solar panels during nights.
· Temperature Compensation: -20°C ~ +60°C
Protection:
· Overcharging protection
· Can be used for all panels
· Overdischarging protection
· Short and Open Circuit protection
· Full specification available if required
· Fail Safe and cannot be damaged by accidental wiring mistakes
· Advanced design with simple plug and play technology. No need for complicated adjustments.
Indicator LED
1.The Battery is being charged strongly when the Charge LED is lighting;Filckering means the battery is in floating charge Mode,if it’s off means charging stopped.
2.When the LOAD LED is lighting,it means there is output and load can work;if it’s off,there isn’t output and the load can’t work.
Parameters:
