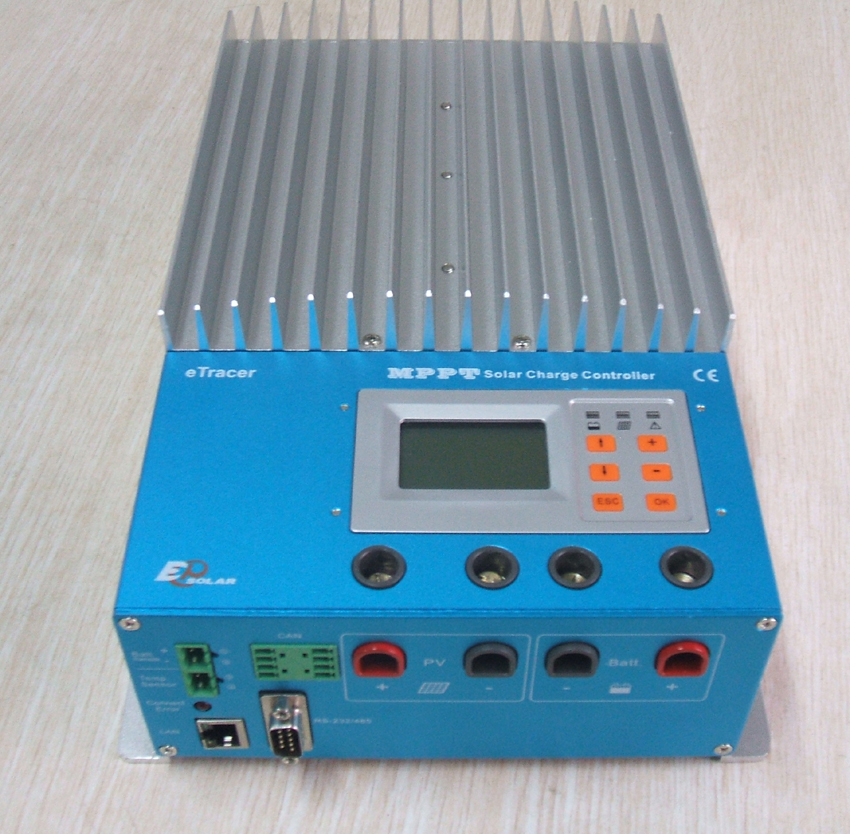

eTracer 48V MPPT Solar Charge Controller



eTracer is an advanced Maximum Power Point Tracking MPPT controller for off-grid photovoltaic(PV) systems up to 3KW.The controller features as mart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point in all the weather condition.The controller provides higher efficiency up to 98% with lower power loss.Include up to 450 days data logging by connecting to Ethernet.

Features：
◆12/24/36/48V auto work
◆Advanced MPPT technology
◆Several seconds tracking speed
◆High Tracking efficiency of 99%
◆Multiphase synchronous rectification technology
◆Peak conversion efficiency of 98%
◆DSP&ARM processors architecture ensures high speed and performance
◆Multifunction LCD displays system data and status
◆Three kinds of communication ports :RS232, CAN BUS and Ethernet
◆Three stages charging optimizes battery performance
◆Software update by users

Specification:

Model No	ET2415N	ET3415N	ET4415N	ET6415N
Norminal System Voltage	12V/24V36V/48V Auto work
Rated Battery Current	20A	30A	45A	60A
Max.PV open circuit voltage	150V
Voltage Range	8-72V
Max.PV input power	260W 12V	400W 12V	600W 12V	800W 12V
	520W 24V	800W 24V	1200W 24V	1600W 24V
	780W 36V	1200W 36V	1800W 36V	2400W 36V
	1040W 48V	1600W 48V	2400W 48V	3200W 48V
Self-consumption	1.4-2.2w
Grounding	Negative
Ambient Temp.Range	-25℃-+55℃
Storage Temp.Range	-30℃-+85℃
Humidity Range	10%-90%N.C.
Enclosure	IP20
Product Size	206x203x105mm	231X203X105mm	285X203X105mm	285X203X121mm
Mounting	150x193mm	150x193mm	200x193mm	200x193mm
Terminal	35mm²
Net Weight	2.6kgs	4.1kgs	4.4kgs	5.0kgs
