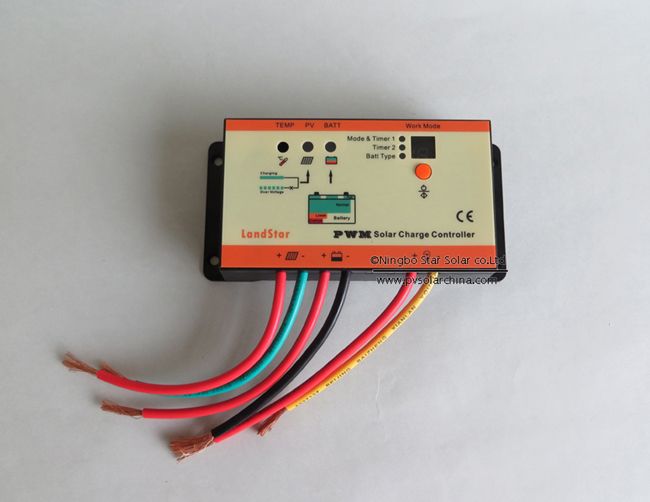

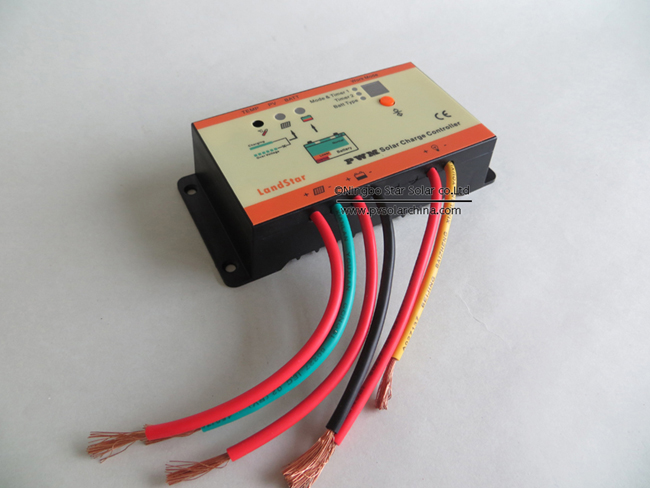

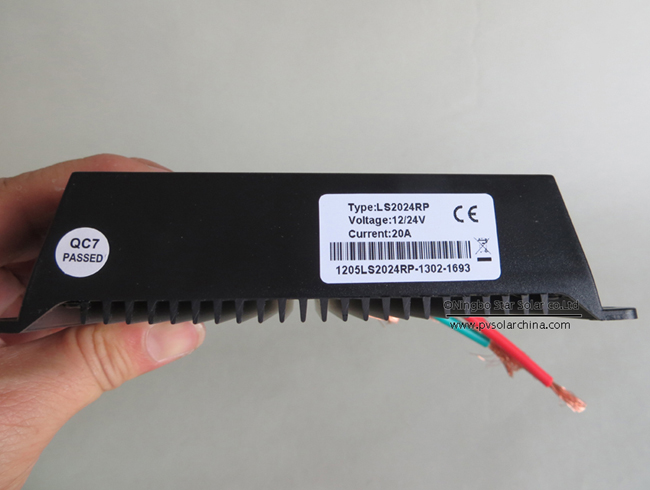

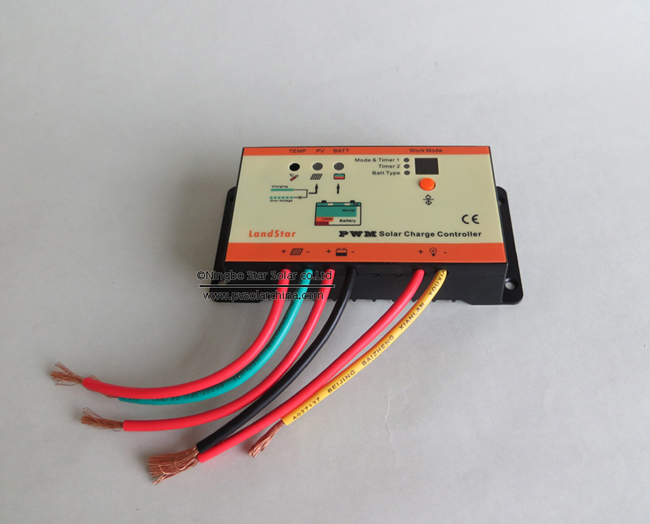

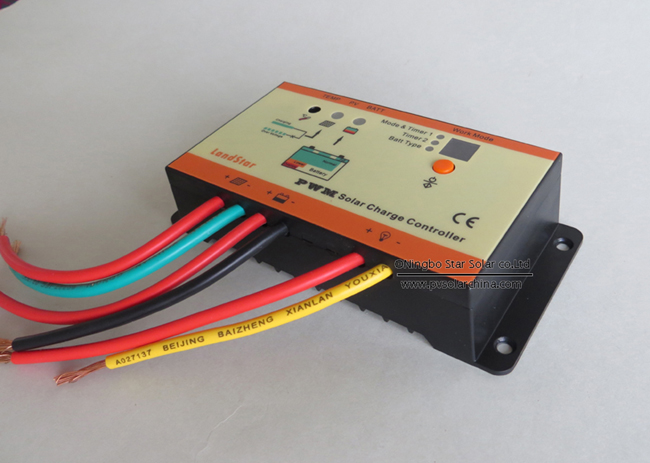

LS2024RP Landstar 20A Waterproof Solar light Controller
Feature:
solar road controller for street light
Dual timer function
Battery type selection
Waterproof IP67
feature
1. Intelligent System Optimum Controller
2.High efficient Series PWM charging with temperature compensation
3.Compact size
4.Use MOSFET as electronic switch, without any mechanical switch
5.Digital LED menu, only one key solve all setting simple
6.Widely used, automatically recognize day/night
7.Intelligent timer function with 1-15 hours option
8.Unique dual timer function, enhance the flexibility of street light system.
9.Gel,Sealed and Flooded battery type option
10.Load status display
11.Big terminals and big distance between terminals
12.Electronic protection:Overheating, over charging, over discharging, overload, and short circuit
13.Reverse polarity protection : Any combination of solar module and battery
14.Load work mode: Light ON+Dual timer, Dusk to Dawn, Test, ON/OFF
Specification:
Model
LS2024RP
Rated Current
20A
System Voltage
12/24V auto work
Over Load Protection
1.25 times of rated current for 60 seconds, or 1.5 times for 5 seconds
Short Circuit Protection
3.5 times of rated current
Self- consumption
Max.6mA
Working Temperature
-35°C to +55°C industrial
Equalize Charging Voltage
14.6V;x2/24V
Boost Charging Voltage
14.4V;x2/24V
Float Charging Voltage
13.8V;x2/24V
Boost Reconnect Charging Voltage
13.2V;x2/24V
Temperature Compensation
-30mV/°C/12V
Under Voltage Warning Voltage
12.0V;x2/24V
Low Voltage Disconnect Voltage
11.1V;x2/24V
Low Voltage Reconnect Voltage
12.6V;x2/24V
Terminals
10 mm2
Enclosure
IP30
Compensation Coefficient
Description
Parameter
Temperature Compensation Coefficient(TEMPCO)*
-30mV/℃/12V（25℃ ref）
* Compensation of equalize, boost, float and boost reconnect voltage
