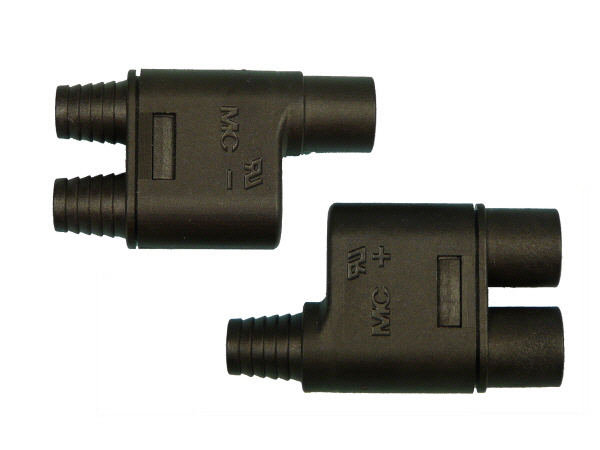

MC3 Multi-Contact Branch 1-Female 2-Male, MC3 Multi-Contact Branch 2-Female 1-Male

Posted by admin in News

MC3 Multi-Contact Branch 1-Female 2-Male, MC3 Multi-Contact Branch 2pcs Female 1pc Male

MC3 Multi-Contact Branch Application
· Compatible MC 3 solar connector.
· Easy and reliable connection of the solar cables to the photovoltaic system (solar panels, converters)
Characteristics
· Integrated twist locking
· Robust
· Temperature range -40°C to +110°C
· High current capacity
· Constant low transition resistance
· High mechanical resistance
· Easy assembly
· UV- and ozone resistant
· Protection mode IP65 in mated condition

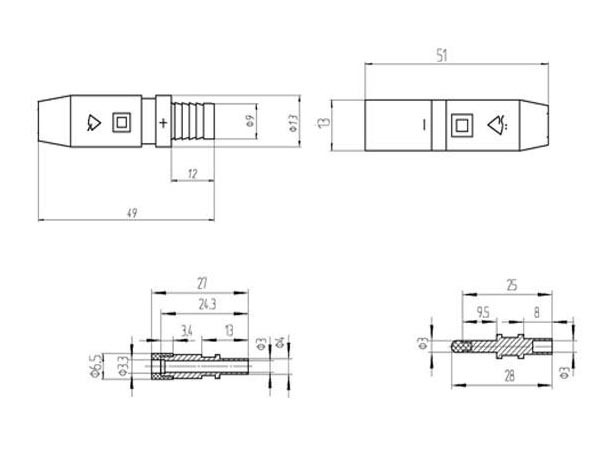

Connector diameter  4 mm
Compatible cable cross sections  Solar cable 4.0 mm² and 6.0 mm²
Max. system voltage  1000 VDC
Current carrying capacity  38A
Material  TPE/PA
Protection type  II
Protection mode  IP 65 in mated condition

MC3 Multi-Contact Branch Package:
Male: 100 sets / PE bag. 10 bag / carton  Female : 100 sets / PE bag. 10 bag / carton .
Measure : 380mm x 290mm x 470mm
Net weight : 34 Kg
Gross weight : 35.5 Kg.
