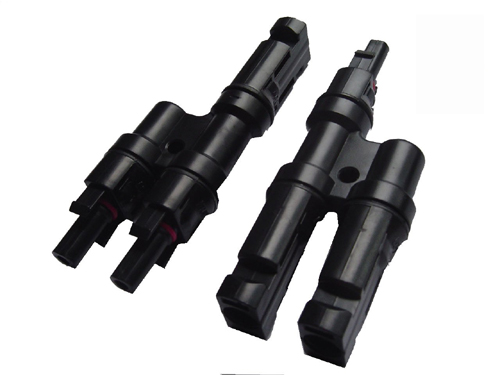

MC4 Multi-Contact Branch 1pc Female 2pcs Male, MC4 Multi-Contact Branch 2pcs Female 1pc Male

Posted by admin in News

MC4 Multi-Contact Branch 1pc Female 2pcs Male, MC4 Multi-Contact Branch 2pcs Female 1pc Male

MC4 PV Solar branch connector
1.water proof and dust proof
2.Simple,quick installation
3.Suitable to MC4 solar connector
4.TUV Rohs Approved

MC4 PV Solar branch connector
Main feature:
1.With excellent aging resistance and UV endurance.
2.It can be used in harsh environment.
3.It does not need extra instruments for the removal of plugs
4.Removal will not cause any harm to plugs.
5.Load capablility with big current and high voltage
6.Good ability of resistance and machine shocking
7.Lower contact resistance
8.Created seal ,design of water proof and dust proof
9.Eligible plastic material has marvelous performances of high low temperature,fireproof,anti-
10.Ultraviolet rays and applied to the long-time operation outside.

MC4 PV Solar branch connector Technical data:
Insulation material: PPO
Rated current: 30A
Rated voltage: 1000V
Test voltage:6KV(50Hz,1Min)
Contact material:Copper,Tin plated
Contact resistance:5mΩ
Protection degree: IP67
Safety class: 2
Flame class:UL94-V0
Insertion force: ≤50N
Withdrawal force: ≥50N
Ambient temperature range:-40°C~+90°C
Pin dimensions: φ4.0mm
Suitable cable: 2.5~6.0mm2 AWG14/12/10
