MT-1 | MT-2 | MT-5 LCD Remote Meter

Posted by admin in News

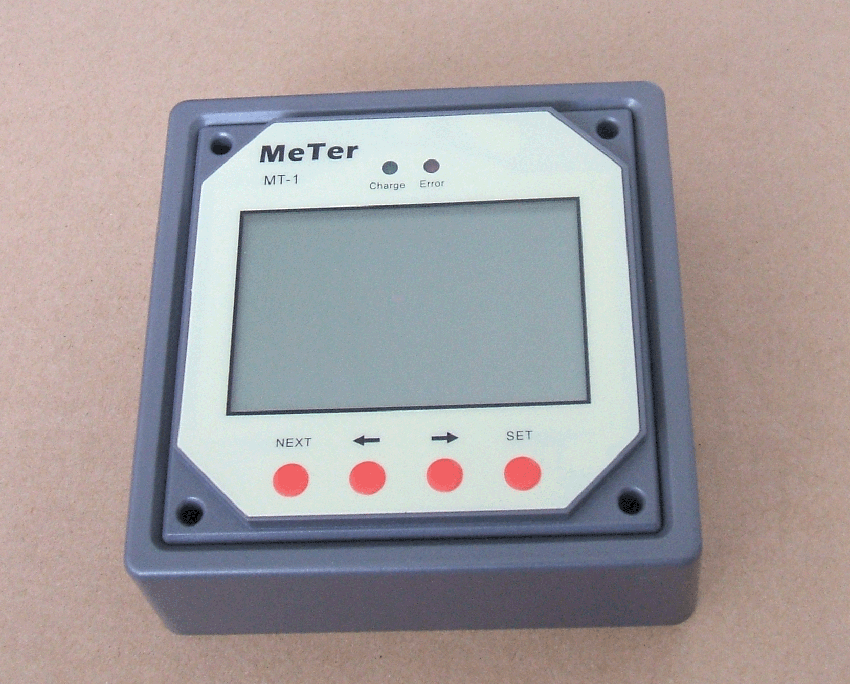

Ⅰ:MT-1 LCD Remote Meter for EPIPDB-COM series solar charge controller

MT-1 is an optional accessory for EPIPDB-COM series solar charge controller. The LCD displays the system status and parameters clearly.

Features:
·Display the system status and parameters with digital and graphic icon.
·Battery type selectable
·Battery Ah setting function
·Temperature compensation coefficient adjustable
·Four keys to solve the setting easily
·Control the load by manual

Specification:

Rated voltage	12V, min voltage (suggest): 8.0V
Strong backlight on	<23mA
Low backlight on	<20mA
Backlight and LED indicator off	<17mA
Operation temperature	-40℃ ~ +60℃
LCD operation temperature	-10℃ ~ +40℃
Humidity	0-100%
Communication cable	RJ45(8PIN), 10 meter

MT-1 LCD Remote Meter User Manual

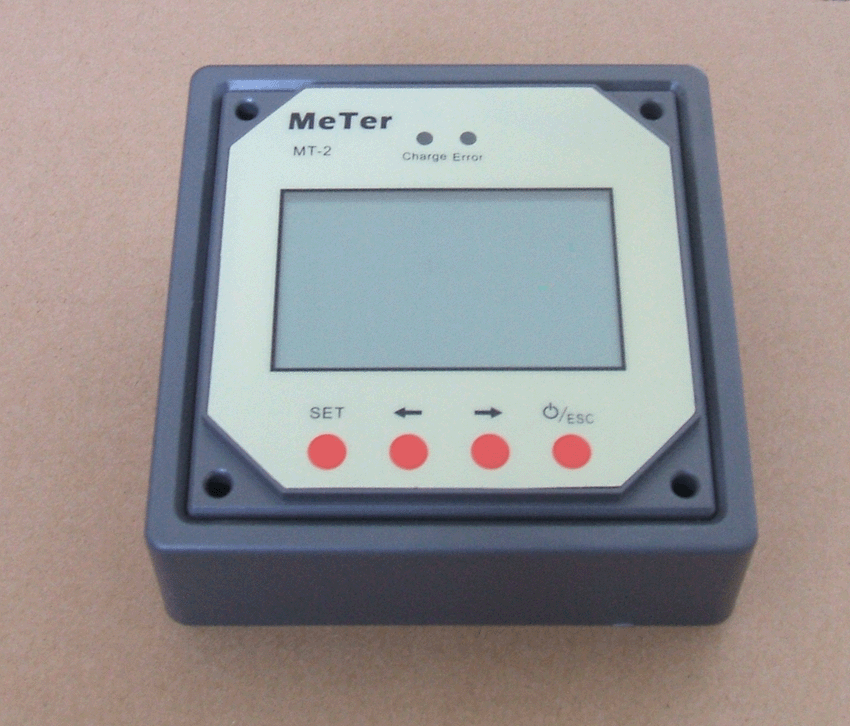

Ⅱ:MT-2 LCD Remote Meter for EPIPC-COM series solar charge controller

MT-2 is an optional accessory for EPIPC-COM series solar charge controller. The LCD displays the system status and parameters clearly. .

Features:
·Display the system status and parameters with digital and graphic icon.
·Battery type selectable
·Battery Ah setting function
·Temperature compensation coefficient adjustable
·Four keys to solve the setting easily
·Control the load by manual

Specification:

Rated voltage	12V, min voltage (suggest): 8.0V
Strong backlight on	<23mA
Low backlight on	<20mA
Backlight and LED indicator off	<17mA
Operation temperature	-40℃ ~ +60℃
LCD operation temperature	-10℃ ~ +40℃
Humidity	0-100%
Communication cable	RJ45(8PIN), 10 meter

MT-2 LCD Remote Meter User Manual

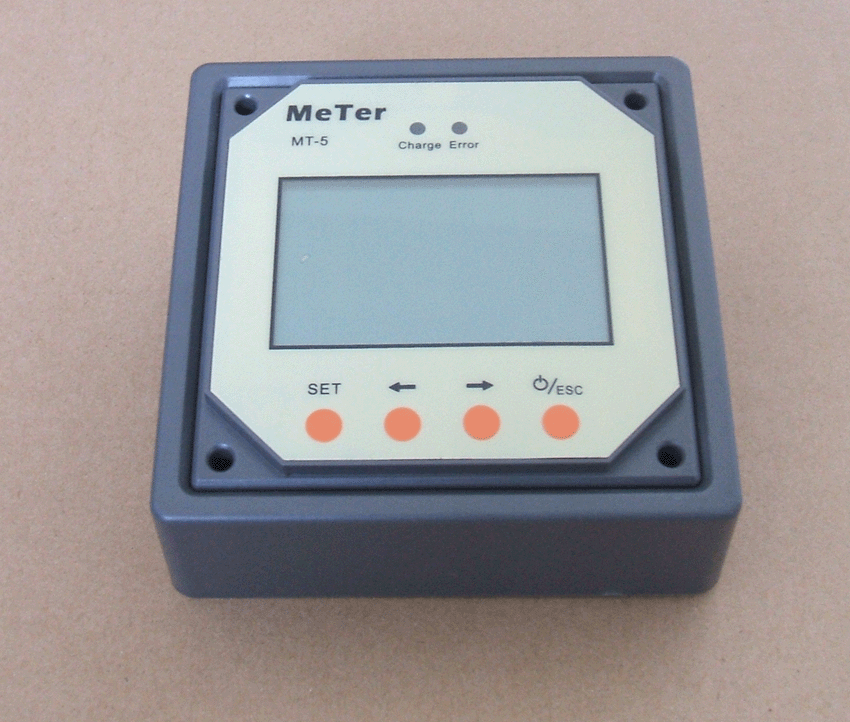

Ⅲ:MT-5 LCD Remote Meter For Tracer MPPT Solar Controller

MT-5 is an optional accessory for Tracer series solar charge controller. The LCD displays the system status and parameters clearly.

Features:
·Display the system status and parameters with digital and graphic icon.
·Battery type selectable
·Battery Ah setting function
·Temperature compensation coefficient adjustable
·Four keys to solve the setting easily
·Control the load by manual

Specification:

Rated voltage	12V, min voltage (suggest): 8.0V
Strong backlight on	<23mA
Low backlight on	<20mA
Backlight and LED indicator off	<17mA
Operation temperature	-40℃ ~ +60℃
LCD operation temperature	-10℃ ~ +40℃
Humidity	0-100%
Communication cable	RJ45(8PIN), 3 meter

MT-5 LCD Remote Meter User Manual
