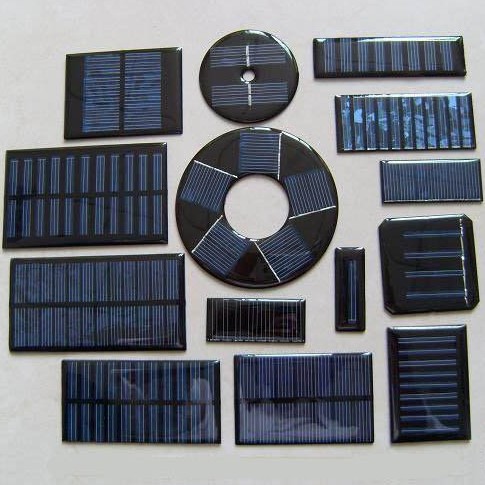

Small Epoxy Resin Solar Panel, Mini PET PV Solar Panels
1.2W 6V PET Laminating Solar Cell Panel
Model:ST-Q130PB
— Maximum Power (Pm) :1.2W
— Working Voltage (Vmp):6V
— Working Current (Imp) :200mA
— Power Tolerance:±5%
— Dimension: Φ130mm, thinkness:2.8mm
— Back Cover: PCB (fiberglass board), black color
— Type:Monocrystalline silicon solar cell
— Encapsulation Methods: PET Lamination
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 5 yeaST.
1.2W 6V PET Solar Cell Panel
Model:ST-Q130PW
— Maximum Power (Pm) :1.2W
— Working Voltage (Vmp):6V
— Working Current (Imp) :200mA
— Power Tolerance:±5%
— Dimension: Φ130mm, thinkness:2.8mm
— Back Cover: PCB (fiberglass board),white color
— Type:Monocrystalline silicon solar cell
— Encapsulation Methods: PET Lamination
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 5 yeaST.
4.5V 375mA OEM Solar Panels
Model: ST-M140120
— Maximum Power (Pm) :1.7W
— Operating Voltage (Vmp):4.5V
— Operating Current (Imp) : 375mA
— Power Tolerance:±5%
— Dimension:140*120*2.8mm
— Type:Monocrystalline silicon solar cell
— Sealed Tech : PET Lamination
5V 160mA OEM Solar Panel
Model: KS-M8080
— Item No. KS-M8080
— Maximum Power (Pm) :0.8W
— Operating Voltage (Vmp):5V
— Operating Current (Imp) :160mA
— Power Tolerance:±5%
— Dimension:80*80*3mm
— Type:Monocrystalline silicon solar cell
— Sealed Tech : Encapsulated with epoxy resin
5V 300mA Small Solar Cell Panels
Model:ST-M120120G
— Maximum Power (Pm) :1.5W
— Operating Voltage (Vmp):5V
— Operating Current (Imp) : 300mA
— Power Tolerance:±5%
— Dimension:120*120*4.5mm
— Type:Monocrystalline silicon solar cell
— Sealed Tech: Tempered glass Lamination
1.8W 18V Tempered glass Solar panel
Model: ST-M190100G
— Maximum Power (Pm) :1.8W
– Working Voltage (Vmp):18V
– Working Current (Imp) :100mA
— Power Tolerance: ±5%
— Solar Cell: Monocrystalline silicon solar cell
— Dimension:190*100*4.5mm
— Encapsulation Methods: Tempered glass; No frame
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 10 yeaST.
5.5V 115mA OEM Solar Panels
Model: ST-M8555
— Maximum Power (Pm) :0.63W
— Operating Voltage (Vmp):5.5V
— Operating Current (Imp) : 115mA
— Power Tolerance:±5%
— Dimension: 85*55*3mm
— Type:Monocrystalline silicon olar scell
— Sealed Tech : Encapsulated with epoxy resin
4V 80mA OEM Small Solar Panels
Model:ST-M5050
— Item No. KS-M5050
— Maximum Power (Pm) :0.32W
— Operating Voltage (Vmp):4V
— Operating Current (Imp) : 80mA
— Power Tolerance:±5%
— Dimension:50*50*3mm
— Type:Monocrystalline silicon or Polycrystalline silicon
— Sealed Tech : Encapsulated with epoxy resiN
Mini Solar Panel– 6V 133mA
Model:KS-M10080
— Maximum Power (Pm) : 0.8W
— Operating Voltage (Vmp):6V
— Operating Current (Imp) :133mA
— Solar Cell: Monocrystalline silicon solar cell
— Dimension:100*80*2.8mm
— Power Tolerance: ±5%
— Encapsulation Methods:PET Lamination
— Packing: 400PCS/Carton,13Kgs/Carton
5.5V 60mA Mini Solar Panel
Model:ST-M8638
— Maximum Power (Pm) :0.33W
— Operating Voltage (Vmp):5.5V
— Operating Current (Imp) :60mA
— Power Tolerance:±5%
— Dimension:86*38*3mm
— Type:Polycrystalline silicon solar cell
— Sealed Tech : Encapsulated with epoxy resin
4V 28mA OEM Mini Solar Panel
Model:ST-M4833
— Maximum Power (Pm) :0.1W
— Operating Voltage (Vmp):4V
— Operating Current (Imp) :28mA
— Power Tolerance:±5%
— Dimension:48*33*3mm
–Type:Monocrystalline silicon solar cell
— Sealed Tech : Encapsulated with epoxy resin
5V 100mA OEM Solar Panel
Model:ST-M10050
— Maximum Power (Pm) :0.5W
— Operating Voltage (Vmp):5V
— Operating Current (Imp) : 100mA
— Power Tolerance:±5%
— Dimension:100*50*3mm
— Type:Monocrystalline silicon solar cell
— Sealed Tech : Encapsulated with epoxy resin
4V 100mA Mini Solar Panel
Model:ST-M6060
— Maximum Power (Pm) :0.4W
— Operating Voltage (Vmp):4V
— Operating Current (Imp) :100mA
— Power Tolerance:±5%
— Dimension:60*60*3mm
— Type:Monocrystalline silicon solar cell
— Sealed Tech : Encapsulated with epoxy resin
6V 315mA Tempered glass laminating Solar panel
Model:ST-Q160G
— Maximum Power (Pm) :1.9W
— Working Voltage (Vmp):6V
— Working Current (Imp) :315mA
— Power Tolerance:±5%
— Dimension: Φ160mm, thinkness:4.5mm
— Panel color: transparent
— Glass thickness:3.2mm,Low iron tempered glass
— Type:Monocrystalline silicon solar cell
— Encapsulation Methods: Glass Lamination Solar panel
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 10 yeaST.
6V 200mA Tempered glass laminating Solar panel
Model:ST-Q130G
— Maximum Power (Pm) :1.2W
— Working Voltage (Vmp):6V
— Working Current (Imp) :200mA
— Power Tolerance:±5%
— Dimension: Φ130mm, thinkness:4.5mm
— Panel color: transparent
— Glass thickness:3.2mm,Low iron tempered glass
— Type:Monocrystalline silicon solar cell
— Encapsulation Methods: Glass Lamination Solar panel
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 10 yeaST.
6V 633mA Tempered glass laminating Solar panel
Model:ST-Q240G
— Maximum Power (Pm) :3.8W
— Working Voltage (Vmp):6V
— Working Current (Imp) :633mA
— Power Tolerance:±5%
— Dimension: Φ240mm, thinkness:4.5mm
— Panel color: transparent
— Glass thickness:3.2mm,Low iron tempered glass
— Type:Monocrystalline silicon solar cell
— Encapsulation Methods: Glass Lamination Solar panel
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 10 yeaST.
6V 85mA Circular Solar panel
Model:ST-Q103G
— Maximum Power (Pm) :0.5W
— Working Voltage (Vmp):6V
— Working Current (Imp) :85mA
— Power Tolerance:±5%
— Dimension: Φ103mm, thinkness:4.5mm
— Panel color: transparent
— Glass thickness:3.2mm,Low iron tempered glass
— Type:Monocrystalline silicon solar cell
— Encapsulation Methods: Glass Lamination Solar panel
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 10 yeaST
9V 555mA Tempered glass laminating Solar panel
Model:ST-Q280G
— Maximum Power (Pm) :5W
— Working Voltage (Vmp):9V
— Working Current (Imp) :555mA
— Power Tolerance:±5%
— Dimension: Φ280mm, thinkness:4.5mm
— Panel color: transparent
— Glass thickness:3.2mm,Low iron tempered glass
— Type:Monocrystalline silicon solar cell
— Encapsulation Methods: Glass Lamination Solar panel
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 10 yeaST.
5V 300mA Small Solar Cell Panels
Model:ST-M120120G
— Maximum Power (Pm) :1.5W
— Operating Voltage (Vmp):5V
— Operating Current (Imp) : 300mA
— Power Tolerance:±5%
— Dimension:120*120*4.5mm
— Type:Monocrystalline silicon solar cell
— Sealed Tech: Tempered glass Lamination
5V 300mA Mini Solar Cell Panels
Model:ST-M120120
— Maximum Power (Pm) :1.5W
— Operating Voltage (Vmp):5V
— Operating Current (Imp) : 300mA
— Power Tolerance:±5%
— Dimension:120*120*3mm
— Type:Monocrystalline silicon solar cell
— Sealed Tech : Encapsulated with epoxy resin
2.6W 18V Tempered glass Solar panel
Model:ST-M240110G
— Maximum Power (Pm) :2.6W
– Working Voltage (Vmp):18V
– Working Current (Imp) 144mA
— Power Tolerance: ±5%
— Solar Cell: Monocrystalline silicon solar cell
— Dimension:240*110*4.5mm
— Encapsulation Methods: Tempered glass; No frame
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 10 years.
5W 18V Tempered glass Solar panel
Model:ST-M5WG
— Maximum Power (Pm) :5W
– Working Voltage (Vmp):18V
– Working Current (Imp) 277mA
— Power Tolerance: ±5%
— Solar Cell: Monocrystalline silicon solar cell
— Dimension:240*195*4.5mm
— Encapsulation Methods: Tempered glass; No frame
— Weight of solar panel: 460g/pcs
— Packing: 20PCS/Carton,9.7Kgs/Carton
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 10 years.
10W 18V Tempered glass Solar panel
Model:ST-M240365G
— Maximum Power (Pm) :10W
– Working Voltage (Vmp):18V
– Working Current (Imp) :556mA
— Power Tolerance: ±5%
— Solar Cell: Monocrystalline silicon solar cell
— Dimension:240*365*4.5mm
— Encapsulation Methods: Tempered glass; No frame
— Test condition: 1KW/sqm, AM1.5, 25 degrees centigrade
— Warranty: nominal power keep more than 90% in 10 years.
