Solar refrigerator include refrigerators and solar photovoltaic semiconductor refrigerator. Solar refrigerator is in general based on the traditional compression-style refrigerator developed into by the solar cell, controller, batteries and refrigerators and other components. Since the internal structure of solar photovoltaic refrigerator the same as the traditional refrigerator, only to solar-powered devices, it is relatively simple to implement. Foreign literature shows that many experimental results show that the traditional exchange of the refrigerator and converted into a photovoltaic solar system for the DC refrigerator, each component can be normal operation, the refrigerator will work.
Solar Refrigerator can be combined with solar power and other 12V or 24V DC power source. They have the advantages of low power consumption, great cooling capacity, popularly used on the area short of electricity.
Solar Refrigerator includes:
1. solar panel
2. maintanence free battery
3. Solar regulator
4. DC compressor Refrigerator
The solar Refrigerator features of low power consumption and high temperature resistance which can be used on the areas short of conventional electricity.

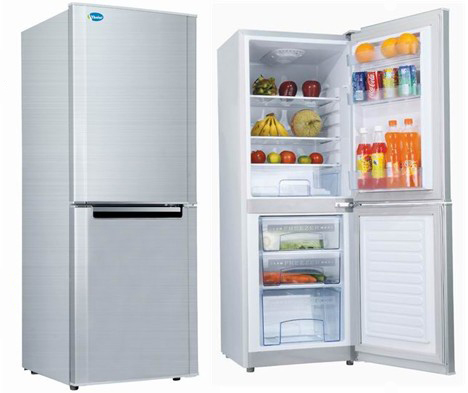

BCD Series Solar Refrigerator
Model
BCD92
BCD118
BCD142
BCD158
Power consumption
60W
72W
72W
72W
Input voltage
DC12V/24V
DC12V/24V
DC12V/24V
DC12V/24V
capacity
92Litres
118liters
142Litres
158 liters
Product size(mm)
470*475*815mm
47*475*1165mm
470*475*1265mm
500*530*1370mm
Carton size(mm)
504*534*854mm
504*534*1203mm
504*534*1303mm
556*605*1427mm
N.W. /G.W(KG)
21/23kgs
34/38kgs
35/39kgs
41/45kgs
MOQ
15PCS
15PCS
15PCS
15pcs
Accessory(optional)
AC/DC adaptor
AC/DC adaptor
AC/DC adaptor
AC/DC adaptor
BCD Series Solar Refrigerator Feature:
1.Cooling performance:0-10℃ for the fridge
2.Automatically turn off at low voltage
3. Anti-discharge battery protect.
4. With DC compressor and can be connected with DC power source directly .e.g. solar power source .
5.high temperature resistent
6.with thermostat

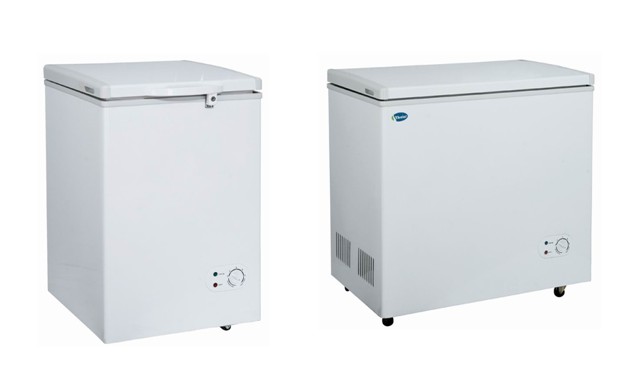

BR Series Solar Refrigerator
Model
BR90
BR138C4
BR188C4
BR238C4
Power consumption
60W
72W
72W
80W
Input voltage
DC12V/24V
DC12V/24V
DC12V/24V
DC12V/24V
capacity
90 Litres
138Liters
188Litres
238Litres
Product size(mm)
535*575*837mm
870*570*840mm
1050*570*855mm
1050*660*940mm
Carton size(mm)
577*600*865mm
912*600*870mm
1106*626*900mm
1106*672*980mm
N.W. /G.W(KG)
40/44kgs
29/33kgs
37/42kgs
52/57kgs
MOQ
15PCS
15PCS
15pcs
15pcs
Accessory(optional)
AC/DC adaptor
AC/DC adaptor
AC/DC adaptor
AC/DC adaptor
BR Series Solar Refrigerator Feature:
1. With DC compressor,R134a
2. Connect to DC 12V or DC 24V directly . e.g. solar power source .
3. With single top door
4.Cooling performance: -18℃ at 30℃ ambient temperature .
5. Automatically turn off at low voltage
6. high temperature resistent
7. mechanical temperature controller
8.with wire basket
All our DC 12V and 24V freezer and refrigerator are convenient to be powered by battery.
